Rough Country 9500 lb Electric Winch (Steel cable)

Rough Country 9500 lb Electric Winch (Steel cable)

SKU:

PRO9500

Brand:

Rough Country

Weight:

95.00 LBS

Product Description

Rough Country’s PRO Winch Systems offer professional recovery at an incredible price! Our high-powered, high-quality recovery solutions are IP67 Waterproof and sure to come in handy when the situation gets a little murky. Water, mud, dirt, and sand are no match for Rough Country's rugged new design. Featuring an IP67 Waterproof and dustproof rating, Rough Country's PRO Winch Systems are built to ward off the elements, providing reliable recovery every time to get you back home safely.

Each unit features Series Wound motors which are extremely efficient at higher speeds and less prone to overheating compared to Permanent Magnet motors. Better still, Rough Country Recovery Systems utilize a 3-stage planetary gear train boasting a 265:1 gear ratio; allowing enormous torque in such a small housing. All Rough Country PRO winch systems include a replaceable Clevis hook for convenience.

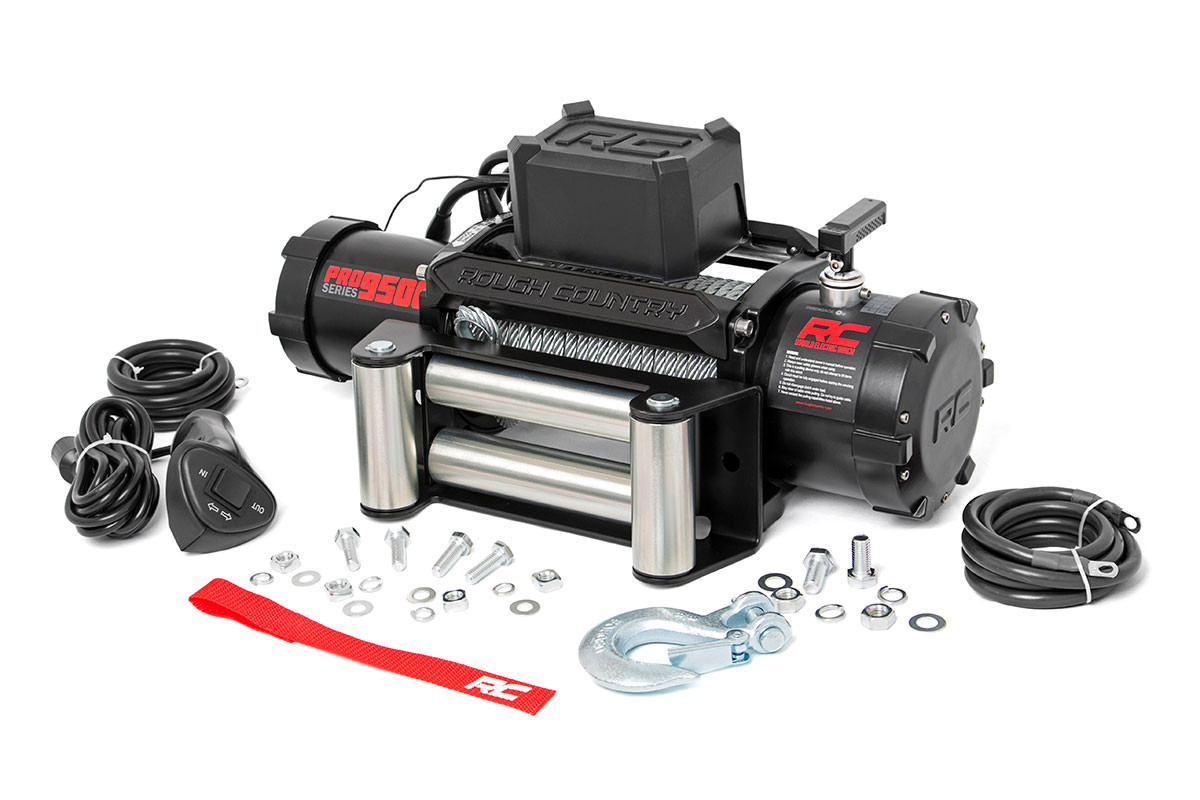

Components:

9500LB electric winch
Clevis hook
4-way roller fairlead
5/16 in x 100 ft steel cable

Specifications:

Rated Line Pull	9500 lbs. (4300 kgs)
Gear Train	3 Stage Planetary
Gear Reduction Ratio	265:1
Motor	Series Wound 5.5hp/4.0kw
Cable	5/16 in x 100 ft Steel Cable
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size (Diameter / Length)	2.5 in / 8.8 in
Bolt Pattern	4 Bolt Pattern, 4.5 in x 10 in
Overall Dimension (L / W / H)	21.3 in x 6.3 in x 8.6 in

Installation instructions can be found here:

http://s3.amazonaws.com/roughcountry/install/rs9500.pdf
